Products

Through our years of experience in the market, we understand the importance of maintaining world class standards to achieve complete client satisfaction. All the services provided by us are designed to provide end-to-end solutions to our customers. Our personnel understand the nature of the business of our clients completely and then assist them in their specific business procedures. Our services are meant to provide solutions by building, implementing, integrating, maintaining and supporting mission-critical applications and activities

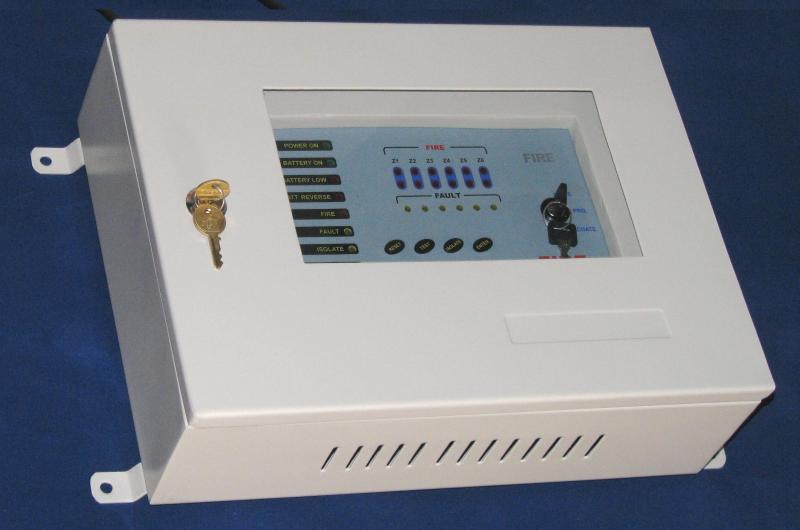

CONVENTIONAL FIRE ALARM SYSTEM

->Available in wide range 1.e. from 2 zones to 64 zones
->Panel operates on stabilized linear power supply of 24V DC supply
->It has both audio and visual annunciations
->Per zone we can connect 20 detectors and any number of MCP's
->Feather touch switches are provided for programming the panel
->Can TEST and ISOLATE individual zones by programming
->Potential free contacts are provided for operating the Water Sprinklers,auto dialers etc...
->It has inbuilt battery recharging circuit
->Can be programmed for Cross zoning,snooze delay and release features(optional)
->It can also be used as security system using panic switches
->High intensity bigger fire indication to observe the knowledge of a person in case of FIRE
AUTO DIALER

->Operates on either 12V or 24V DC
->Operates in either TONE or PULSE modes
->LINE IN and LINE OUT facility provided
->Voice can be read back using an 8-Ohm speaker
->User can program 20 phone numbers of 16 digits(max) each
->User can store voice message of 20 secs
->Each phone number is dialed thrice and voice message is given thrice for each number dialed
->Visual indication for POWER ON, BUSY,PROG, and REC
->Works on both EPABX and normal line
->Seven segment display is provided to display the programming and dialing numbers
DX Series Control panels
The Dimension series of intelligent multi protocol fire alarm systems has been developed with two basic concepts: simplicity and reliability. These are ‘out of the box and on the wall’ solutions. Once it is in place and the wiring is connected, everything else is configured in the software. Programming is simple.
ZX Series Control Panels
A range of intelligent fire alarm panels designed around proven and reliable microprocessor technology, which has produced a modular, scalable fire alarm platform for protecting all types of premises.

Intuitive to use and easy to install, network, configure, maintain and expand.
MS-9050UD 50-Point Intelligent Control
Suited for stand-alone applications, the MS-9050UD is ideal for smaller facilities such as apartment complexes, banks, cinemas, child care and elementary schools, department stores, food stores, places of worship, restaurants, small retail outlet stores, and other facilities requiring performance-based, sophisticated technology at reasonable cost.
MS-9200UDLS
The new MS-9200UDLS Rev 2, V4.0 Firmware adds new features such as USB Port, ANN-Bus devices and improved on-board communicator that provides support for the changing phone service environment. The MS-9200UDLS is ideal for commercial, industrial, manufacturing, office buildings, schools, strip malls and other facilities requiring performance-based, sophisticated technology at reasonable cost.
MS-9600LS 636-Point Intelligent Control with optional DACT-UD2
The Fire-Lite MS-9600LS and MS-9600UDLS are a compact, cost-effective, intelligent addressable fire alarm control panel with a capacity of 318 addressable Fire-Lite devices on one Signaling Line Circuit (SLC) or a total of 636 addressable points with an optional second loop (SLC-2LS).
Series 300 2351E
2351E Photoelectric detectors incorporates an Application Specific Integrated Circuit (ASIC). Combined with the latest state of the art optical chamber the detector provides efficient and accurate detection of fires with a high level of resilience to non-fire environmental influences.
Series 300 2351TEM
2351TEM Photoelectric smoke/thermal detectors incorporate an optical chamber and a thermal element, which in turn are continually monitored by an on board processor by using algorithms developed specifically for the unit. An alarm signal is only enabled in the detector once the processor is satisfied that an incipient fire has been detected. By using a combination of inputs, the incidence of nuisance alarms is reduced while at the same time, the response time to an actual fire is also improved.
Series 300 5351E (Rate of Rise & Fixed Temp)

5351E Thermal detectors incorporate an Application Specific Integrated Circuit (ASIC). Combined with the latest in thermal element technology the detector provides efficient and accurate detection of fires, especially in environments such as bars or kitchens where smoke detectors are inappropriate due to the high level of airborne contamination.
